Number of circuits：53CKT
Current rating：14×500A+12×50A+9× 2A+2×Gigabit Ethernet
Insulation resistance：≥500MΩ@1000VDC ≥100MΩ@300VDC (signal)
Voltage：380VAC

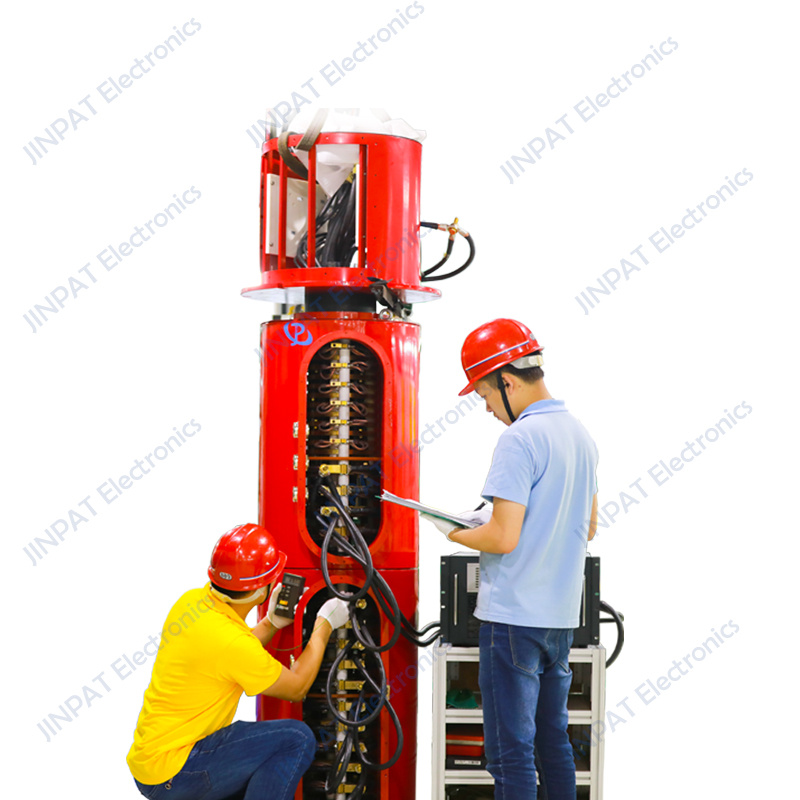

LPA000-14500-1250-0902-02E3 – Dynamic 5D Cinema
Features
1、Built-in ventilation system, low temperature rise.
2、Uses imported graphite brush
3、Precise rotation angle, excellent transmission performance, smooth and reliable operation.
Advantages
1、Simultaneous rotation transmission of high power and signals.
2、Independent module design to avoid interference.
3、Multi-channel for large currents, external height up to 2.3m, module assembly
| Electrical & Electronics | Mechanical | Environmental conditions | |||
| Number of circuits | 53CKT | Rotation speed | 0~15rpm | Temperature | -10°C~+80°C |
| Current | 14×500A+12×50A+9×
2A+2×Gigabit Ethernet |
Contact material | Precious metal/
Copper-graphite |
Humidity | ≤85%RH |
| Voltage | 380VAC | Housing material | Q235 | Protection class | IP51 |
| Dielectric strength | ≥1500VAC@50Hz
≥300VAC@50Hz (signal) |
Wire type | 95/25mm² rubber wire/
AWG26# Teflon/ Ethernet cable |
Other | |
| Insulation resistance | ≥500MΩ@1000VDC
≥100MΩ@300VDC (signal) |
Length of the cable | / | Lifetime | Can be customized |

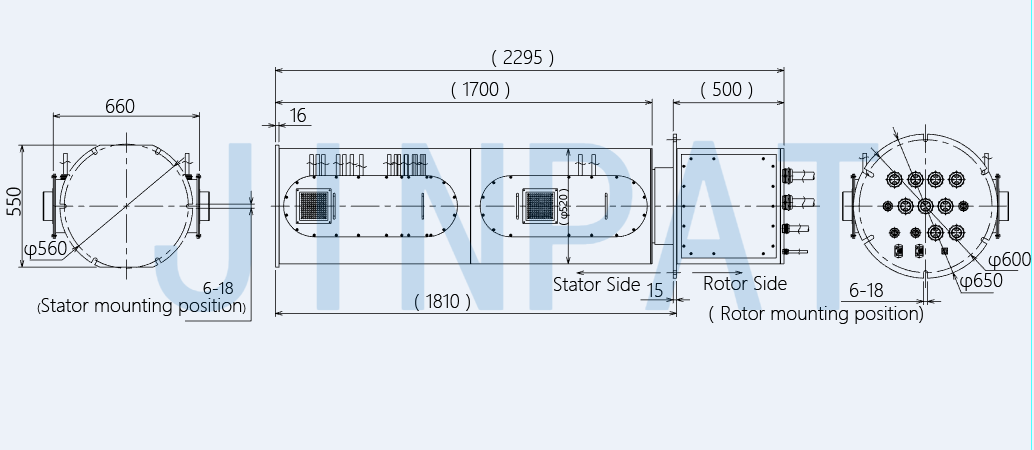

Outline drawings
