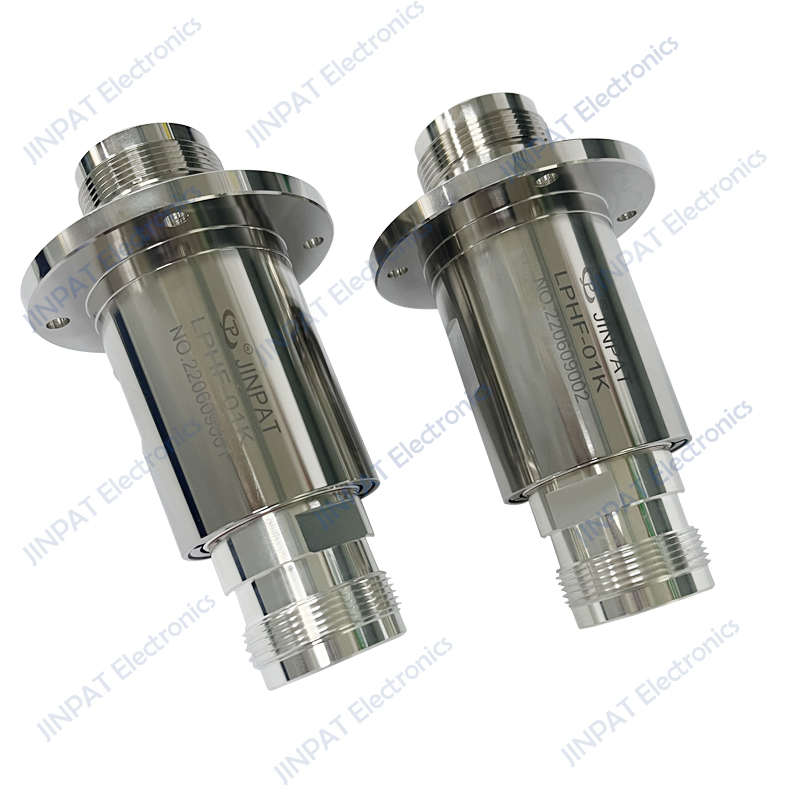

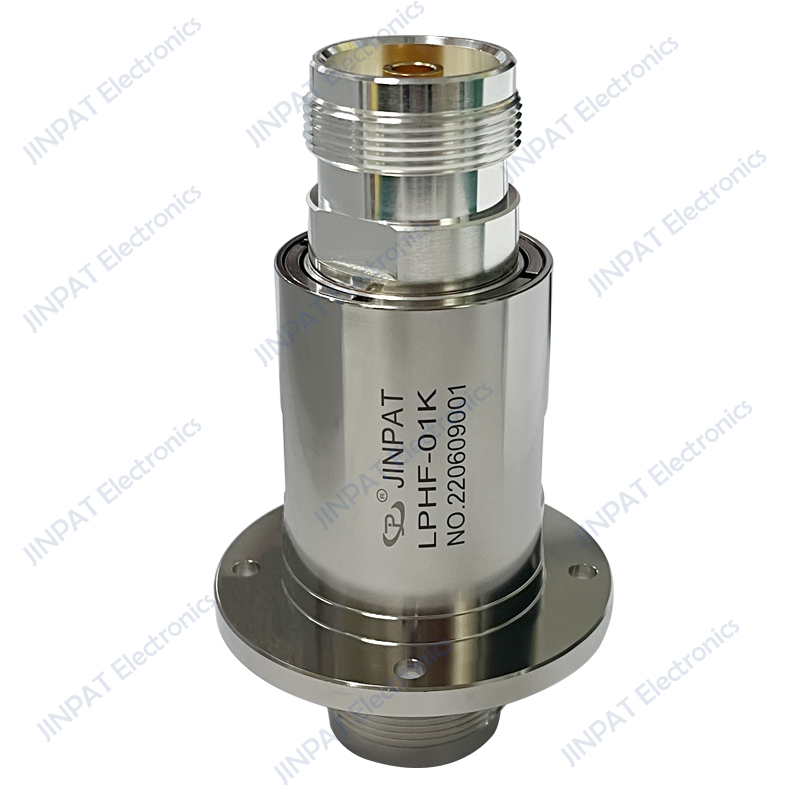

LPHF-01K RF rotary joints

LPHF-01K RF rotary joints

Customer Satisfied
0%

Attached Document

High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints.

They are also known as high frequency slip rings and radio frequency slip rings.

High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals, RF signals and microwave signals.

The slip ring series support single channel and multi channels transmission of high frequency signals.

There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals,

communication signals, power signals and fluid medium.

Specifications

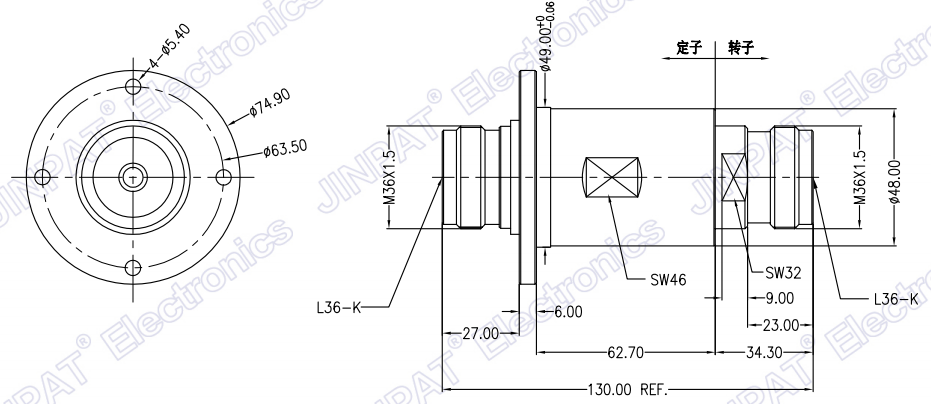

Interface Tpe L36-F(50Ω) Axial Load On Interface,Max ±8N
Frequenc Range DC-30MHz Radial Load On Interface,Max. ±8N
VSWR,Max. 1.20 Bod Material Brass
VSWR WOW 0.1 Insulator Material PTFE
Insertion Loss,Max. 0.5dB Marking Laser Marking
Insertion Loss WOW 0.1dB Weight,approx 2.7KG
Peak Power,Max. 20KW IP Protection Level IP40
Average Power,Max. 15KW Operation Temperature -45~+80°C
Phase WOW,Max Storage Temperature -55~+85°C
Rotating Speed,Max. 100rpm Humidit(Operation) 95%
Life Time,Min 5 Million Revolutions Humidit(St) 95%
Starting Torque 30Ncm Max Continuous Rotational Torque 30Ncm Max
