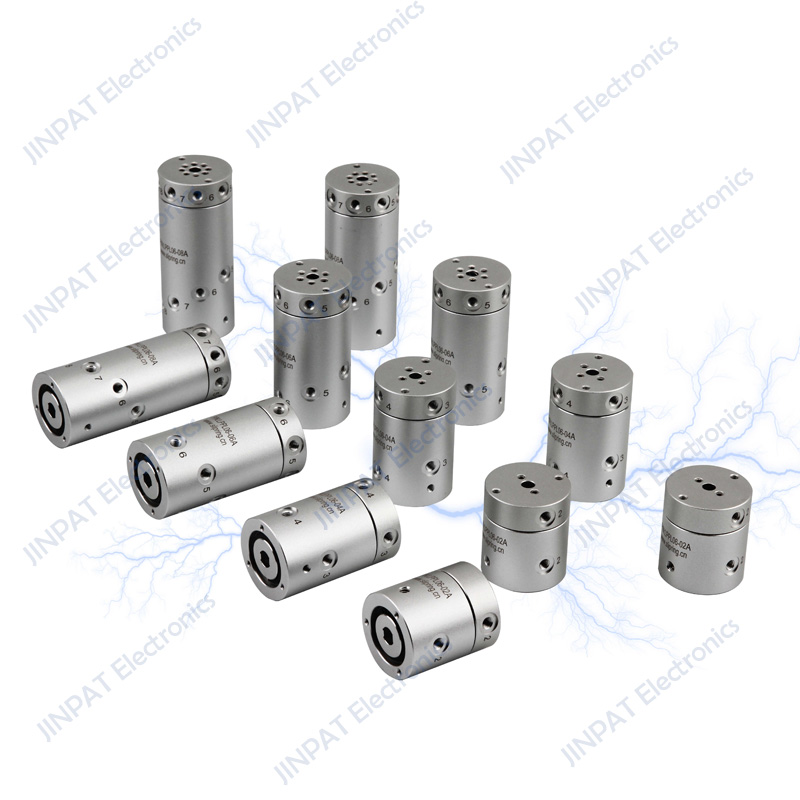

A pneumatic slip ring is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection.
Pneumatic slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously.
| Electrical&Electronics | Mechanical | |||
| Circuits | total | 173CKT | Working Speed | 0~90 rpm |
| Detail | 49*10A+40*5A+84*Signal | Inner Diameter | / | |
| Rating Voltage | 220V(P)/12VDC(S) | Contact Material | Precious Metal | |
| Dielectric Stength | 500VAC@50Hz (P) 100VAC@50Hz(S) |
Housing Material | Aluminum Alloy | |
| Insulation Resistance | ≥500MΩ@500VDC(P)
≥100MΩ@100VDC(S) |
Lead Wire Length | Stator:1000mm
Rotor:1000mm |
|
| Environment | Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40(Horizontal installation) | Note:”P”stands for power ,”S”stands for signal | ||

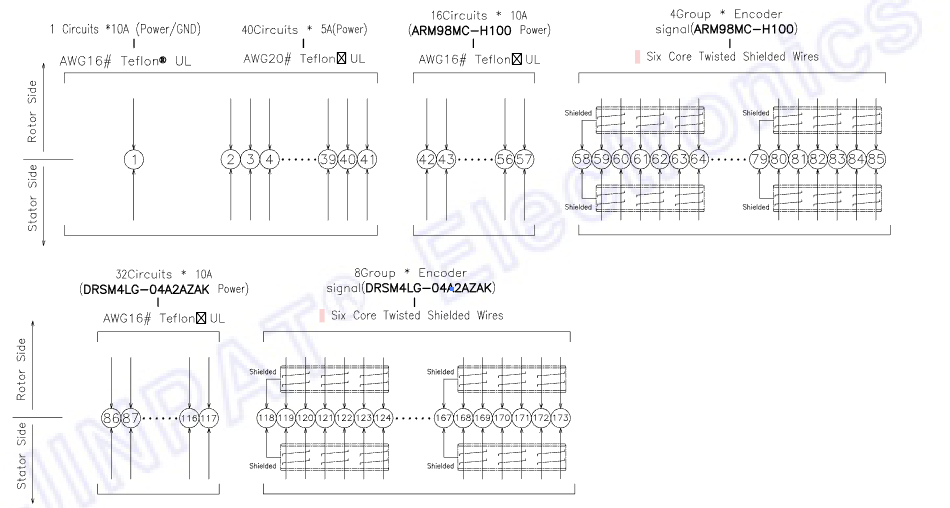

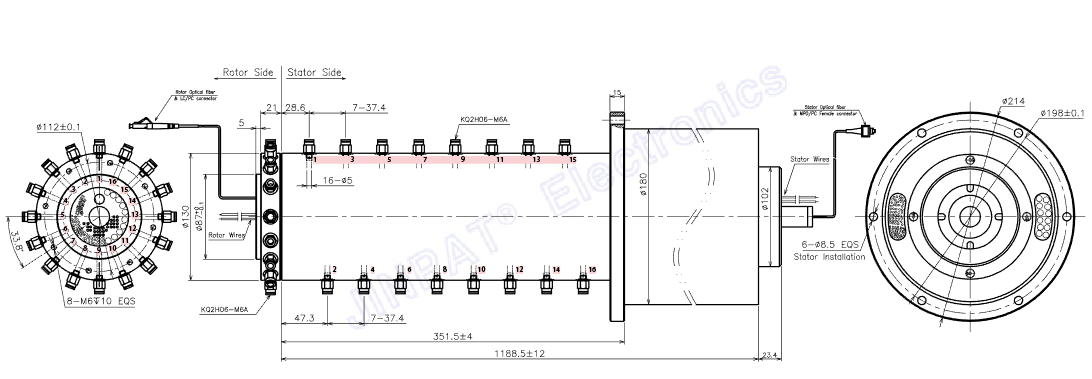

LPPL000-16A-4910-4005-84S-FO32-EN-Outline Drawing
